Paver Block Testing
(IS 15658 — Concrete Paving Blocks)

Complete mechanical testing of concrete paving blocks as per IS 15658 — verifying compressive strength, water absorption, abrasion resistance, dimensional tolerances and skid resistance for roads and public spaces.

Overview

What is the Paver Block Testing?

Concrete Paving Blocks (Paver Blocks) are precast concrete units used for pedestrian areas, plazas, driveways, parking areas, ports and industrial floors. IS 15658 specifies minimum compressive strength of 35 N/mm² (Group A, B, C) based on application — with stricter requirements for vehicular and heavy industrial use.

At Global Lab, paver block testing is conducted as per IS 15658 covering compressive strength, water absorption (≤6% by weight), dimensional tolerances (length, width, thickness), flatness, abrasion resistance (for vehicular use) and skid resistance — mandatory tests for CPWD, municipal and NHAI pavement projects.

IS 15658 Group Classification

Group A/B/C compressive strength (≥35 N/mm²) designation assigned.

Compressive Strength

Minimum 35 N/mm² per IS 15658 — tested on full block cross-section.

Water Absorption ≤6%

Low absorption confirms dense, durable concrete mix for paving use.

Abrasion Resistance

Vehicular paver abrasion loss tested per IS 15658 Table 3.

NABL Certified Reports

All results on NABL-accredited letterhead with IS 15658 compliance.

Dimensional Tolerances

Length ±2mm, width ±2mm, thickness ±3mm per IS 15658 Table 1.

Test in Action

Paver Block Testing — Site Images

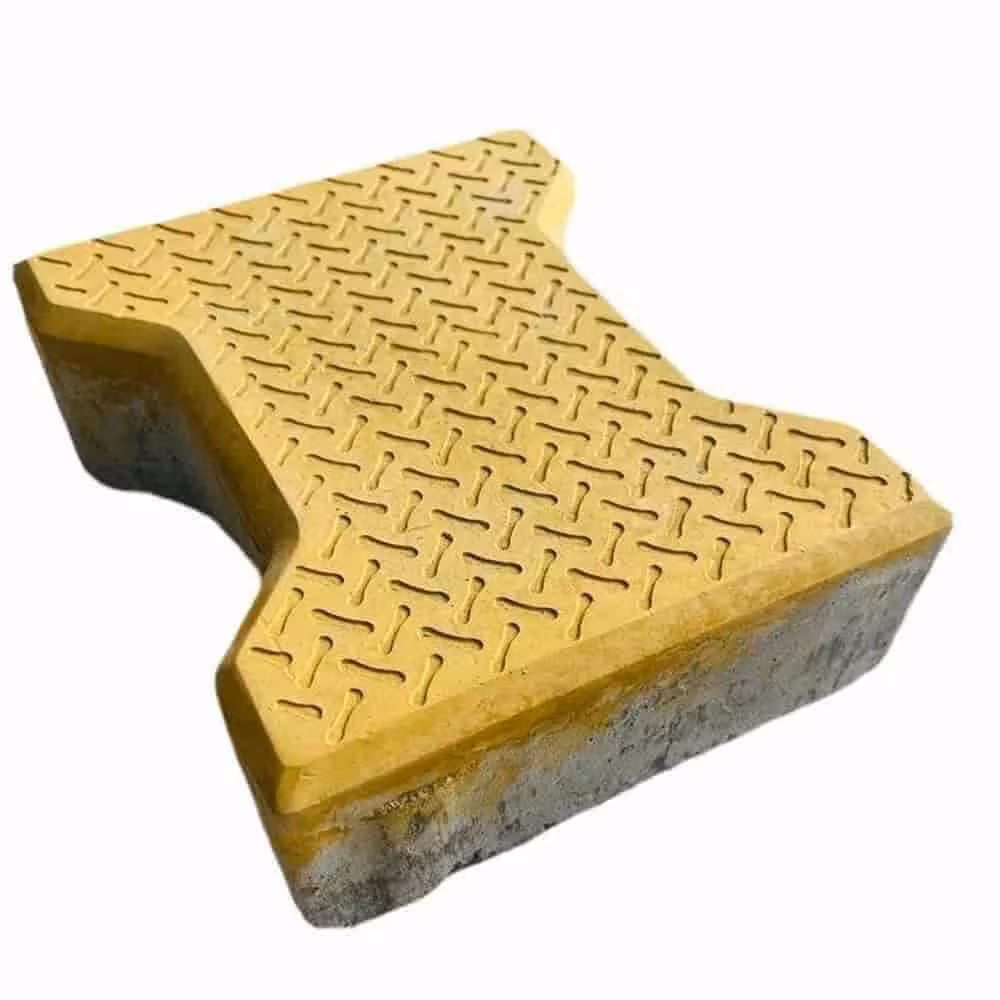

Paver Block Dimensional Measurement

Water Absorption Test on Paver Block

Compressive Strength Test in CTM

Test Procedure

How the Paver Block Testing is Conducted

1

Sample Collection

Minimum 6 blocks selected per IS 15658 sampling from consignment.
2

Dimensional Check

All 6 blocks measured for length, width, thickness and flatness.
3

Water Absorption

3 blocks tested for 24-hour water absorption per IS 15658.
4

Compressive Strength

3 blocks tested in CTM at standard loading rate. Compressive strength per IS 15658.
5

Abrasion & Report

Abrasion resistance tested for vehicular use blocks. IS 15658 Group assigned. NABL report within 28 days.

Standards & Specifications

Applicable Test Standards

Standard	Title	Scope	Type
IS 15658	Precast Concrete Blocks for Paving — Specification	Paver Blocks	Indian Standard
IS 2185 Part 1	Concrete Masonry Units — Hollow and Solid Concrete Blocks	Reference Standard	Indian Standard
IS 516	Methods of Tests for Strength of Concrete	Strength Reference	Indian Standard
BS EN 1338	Concrete Paving Blocks — Requirements and Test Methods	European Standard	British Standard

Applications

Where is the CAPO Test Used?

CPWD and municipal footpath and plaza paver block acceptance testing

Driveway and parking area paver block quality control for residential projects

Port and industrial apron heavy-duty paver block compressive strength verification

Paver block manufacturer quality certification for IS 15658 compliance

Decorative permeable paver block water absorption and strength testing

Airport apron and taxiway paver block acceptance testing

Why Choose Global Lab

Our Advantages

NABL Accredited ReportsLegally valid IS 15658 compliance certificates for CPWD and municipal projects.

Complete Test SuiteCompressive strength + water absorption + dimensions + abrasion in one report.

Group ClassificationIS 15658 Group A/B/C designation directly usable in project specification.

Fast 28-Day ReportComplete IS 15658 test suite within 28 days of sample receipt.

Pan-India CoverageTesting at all 7 NABL-accredited lab locations.

Combined Block PackagePaver + Hollow concrete + AAC block testing offered together.
