FRP Manhole Cover Testing
(Fibre Reinforced Plastic — BS EN 124)

Complete mechanical and material testing of fibre reinforced plastic (FRP) manhole covers — verifying load capacity, deflection, impact resistance and dimensional accuracy per BS EN 124.

Overview

What is the FRP Manhole Cover Testing?

FRP Manhole Covers are lightweight, corrosion-resistant alternatives to cast iron and concrete for utility access in roads, footpaths, airports and corrosive environments. FRP covers (glass fibre reinforced polyester) offer non-conductive, non-magnetic, anti-theft and lightweight advantages over conventional covers.

At Global Lab, FRP manhole cover testing covers the BS EN 124 load classification test (A15 to F900 classes), deflection under load, impact resistance, flexural strength of the composite material and dimensional verification — providing comprehensive acceptance data for FRP cover procurement and CE marking.

BS EN 124 Class Load Test

A15/B125/C250/D400/E600/F900 class load tests per BS EN 124.

Deflection Under Load

Deflection at service load measured vs BS EN 124 limits.

Impact Resistance

Drop weight impact test verifies resistance to impact from tools and traffic.

FRP Material Testing

Flexural strength of composite material per ASTM D790 also available.

NABL Certified Reports

All results on NABL-accredited letterhead per BS EN 124.

All Shapes & Sizes

Circular, square and rectangular FRP covers in all load classes.

Test in Action

FRP Manhole Cover Testing — Site Images

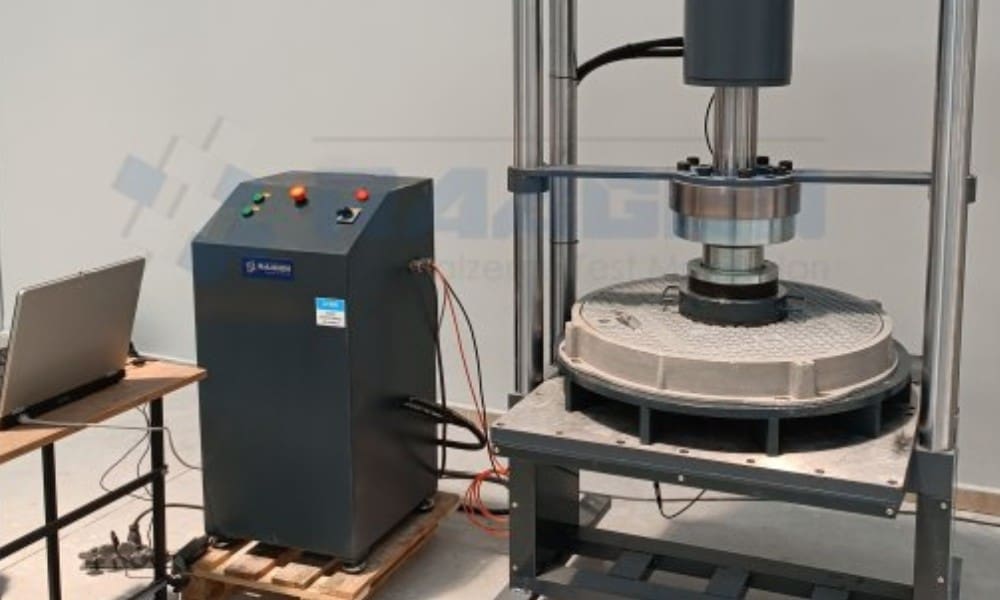

FRP Manhole Cover Seated in Test Frame

Load Application by Hydraulic Jack

Post-Load Deflection Measurement

Test Procedure

How the FRP Manhole Cover Testing is Conducted

1

Dimensional Verification

FRP cover and frame dimensions checked against BS EN 124 and product specification.
2

Cover Seating Assessment

Cover seated in frame — rocking, play and seating adequacy assessed.
3

Test Load Application

Hydraulic jack applies BS EN 124 class load to cover. Deflection measured.
4

Post-Load Inspection

Load removed. Cover inspected for permanent deformation, cracking or delamination.
5

BS EN 124 Compliance Report

Load, deflection and dimensional results vs BS EN 124. NABL report within 7 days.

Standards & Specifications

Applicable Test Standards

Standard	Title	Scope	Type
BS EN 124	Gully Tops and Manhole Tops for Vehicular and Pedestrian Areas	FRP Manhole Standard	British Standard
ASTM D790	Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics	FRP Flexural	ASTM
IS 1726	Cast Iron Manhole Covers and Frames — Specification	Reference Standard	Indian Standard
ISO 2531	Ductile Iron Pipes, Fittings, Accessories — Requirements	Pipeline Reference	ISO

Applications

Where is the CAPO Test Used?

FRP manhole cover acceptance testing for road and footpath projects

Airport FRP cover testing — non-magnetic and non-sparking requirement

FRP cover procurement quality control for utility and telecom projects

New FRP product approval testing for manufacturers seeking CE marking

Corrosive environment manhole cover selection for chemical plants

Anti-theft FRP cover acceptance for public utility installations

Why Choose Global Lab

Our Advantages

NABL Accredited ReportsLegally valid BS EN 124 certificates for all procurement requirements.

All Load ClassesA15 through F900 load class testing — complete BS EN 124 scope.

FRP Material TestingComposite flexural strength tested alongside product load test.

Fast 7-Day TurnaroundComplete test suite within 7 days.

Pan-India CoverageTesting at all 7 NABL-accredited lab locations.

Combined Manhole TestingFRP + Concrete manhole cover testing offered together for comparison.
