Precast Concrete Manhole Cover Testing
(IS 1726 — Manhole Cover Load Test)

Complete mechanical testing of precast reinforced concrete manhole covers and frames as per IS 1726 — verifying load capacity, dimensional accuracy and surface finish for road and utility applications.

Overview

What is the Precast Concrete Manhole Cover Testing?

Precast Concrete Manhole Covers must withstand repeated heavy traffic loading without failure. IS 1726 specifies load test requirements for different duty classes — Light Duty (LD), Medium Duty (MD), Heavy Duty (HD) and Extra Heavy Duty (EHD) — corresponding to footpaths, light roads, main roads and heavy industrial traffic.

At Global Lab, manhole cover testing covers the IS 1726 load test (proof load and ultimate load), dimensional verification, skid resistance assessment and surface finish inspection — all in our NABL-accredited laboratory using calibrated loading frames with hydraulic jacks and load cells.

IS 1726 Load Classification

LD/MD/HD/EHD duty class load tests per IS 1726.

Proof Load & Ultimate Load

1.5× service proof load and ultimate load to failure tested.

Dimensional Verification

Cover size, frame dimensions and seating checked against IS 1726.

Skid Resistance

Surface pattern effectiveness for slip resistance verified.

NABL Certified Reports

All results on NABL-accredited letterhead per IS 1726.

All Shapes & Sizes

Circular, square and rectangular covers in all duty classes.

Test in Action

Precast Concrete Manhole Cover Testing — Site Images

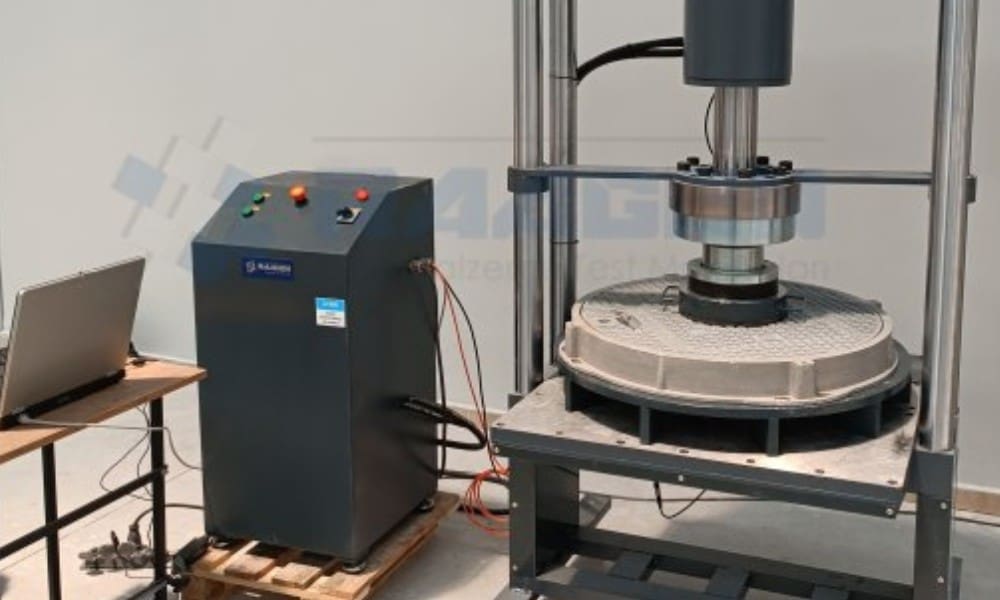

Manhole Cover Seated in Frame for Load Test

Hydraulic Jack Applying Proof Load

Dimensional Inspection Against IS 1726

Test Procedure

How the Precast Concrete Manhole Cover Testing is Conducted

1

Dimensional Check

Cover and frame dimensions, seating depth and surface finish checked per IS 1726.
2

Cover Placement

Cover seated in frame. Frame placed on prepared flat support per IS 1726.
3

Proof Load Application

Hydraulic jack applies proof load to centre of cover. Load held 1 minute. No cracking or permanent set permitted.
4

Load Removal & Inspection

Load removed. Cover inspected for cracks, permanent deformation and seating disturbance.
5

IS 1726 Compliance Report

All dimensional and load test results vs IS 1726. NABL report within 7 days.

Standards & Specifications

Applicable Test Standards

Standard	Title	Scope	Type
IS 1726	Cast Iron Manhole Covers and Frames — Specification	Manhole Standard	Indian Standard
IS 12592	Precast Concrete Manhole Cover Slabs and Frames	Precast Manhole	Indian Standard
BS EN 124	Gully Tops and Manhole Tops for Vehicular and Pedestrian Areas	European Standard	British Standard
IS 456:2000	Plain and Reinforced Concrete — Code of Practice	Concrete Design	Indian Standard

Applications

Where is the CAPO Test Used?

Road manhole cover acceptance testing for municipal and NHAI projects

Precast manhole cover quality audit for utility installation projects

Heavy duty industrial manhole cover testing for port and airport use

Manhole cover procurement quality control for large infrastructure projects

New product approval testing for precast manhole cover manufacturers

Replacement cover specification verification for maintenance contracts

Why Choose Global Lab

Our Advantages

NABL Accredited ReportsLegally valid IS 1726 compliance certificates for municipal and NHAI acceptance.

All Duty ClassesLD, MD, HD and EHD duty class load testing available.

Fast 7-Day TurnaroundComplete IS 1726 test suite within 7 days.

Pan-India CoverageTesting at all 7 NABL-accredited lab locations.

High Volume CapacityBatch testing of multiple covers for large procurement orders.

Combined Product TestingConcrete + FRP manhole cover testing offered together.
